Khoom Taw Qhia

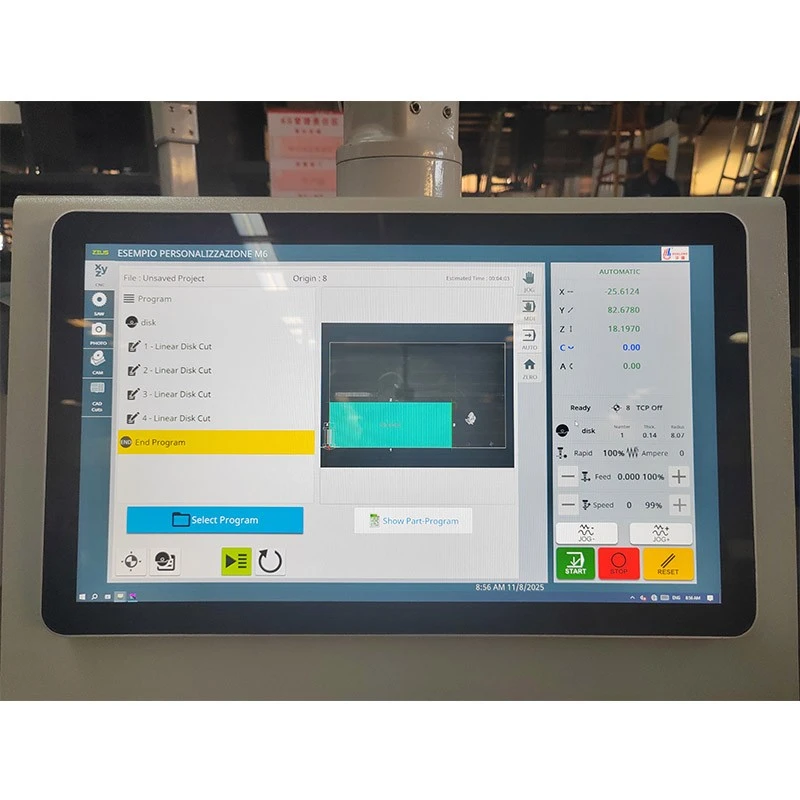

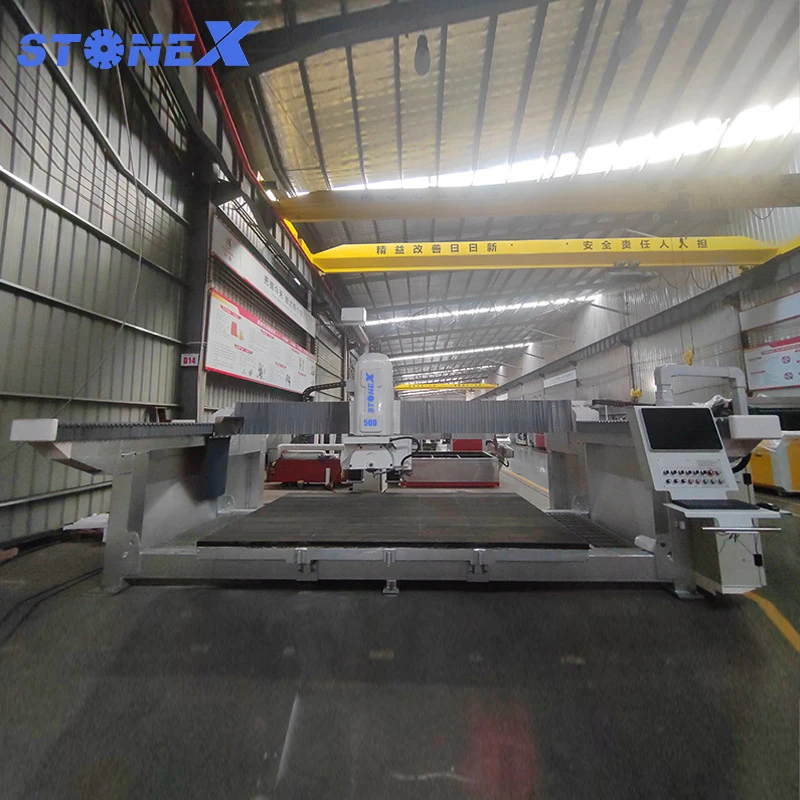

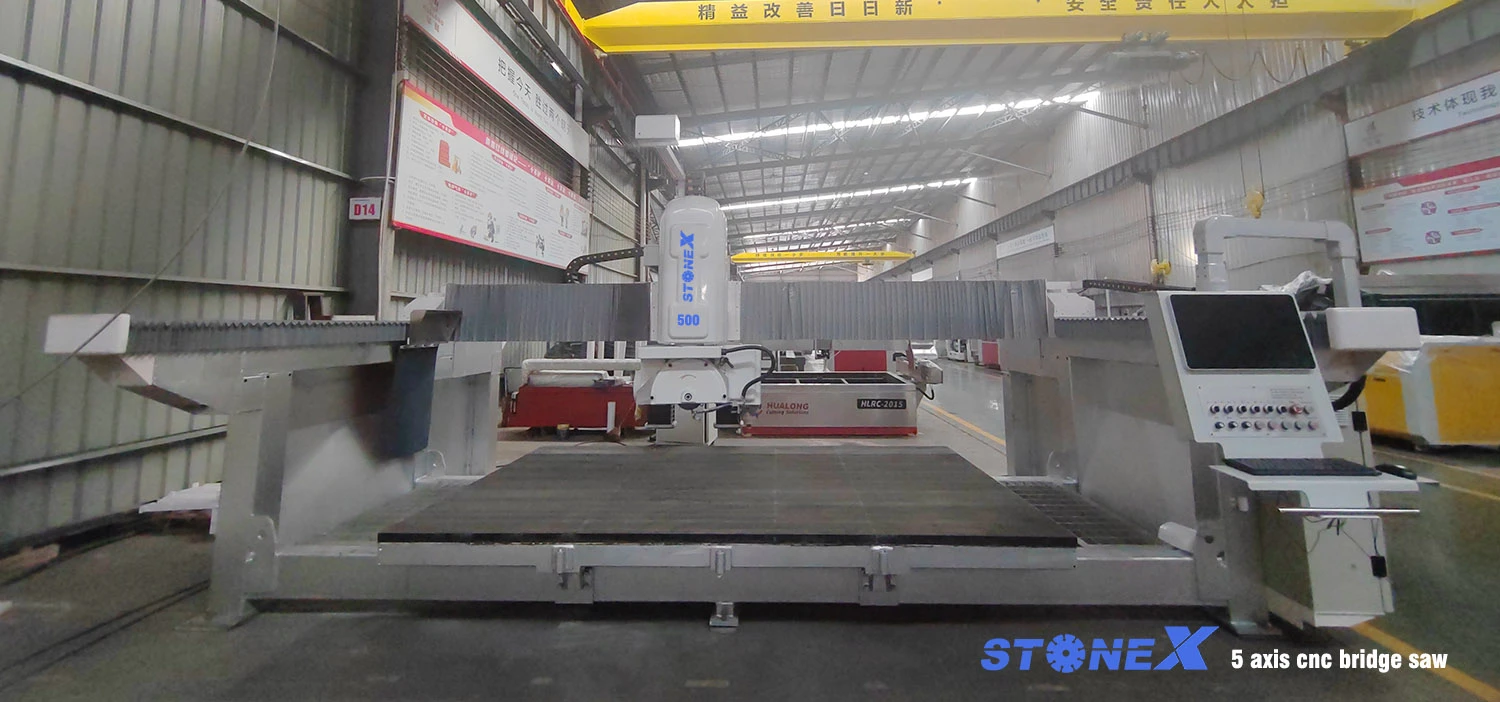

Qhov no Huayi pob zeb 5 axis cnc pom yog nruab nrog Italian ESA tswj qhov system, xa cov kev ua haujlwm siab thiab ua haujlwm siab.

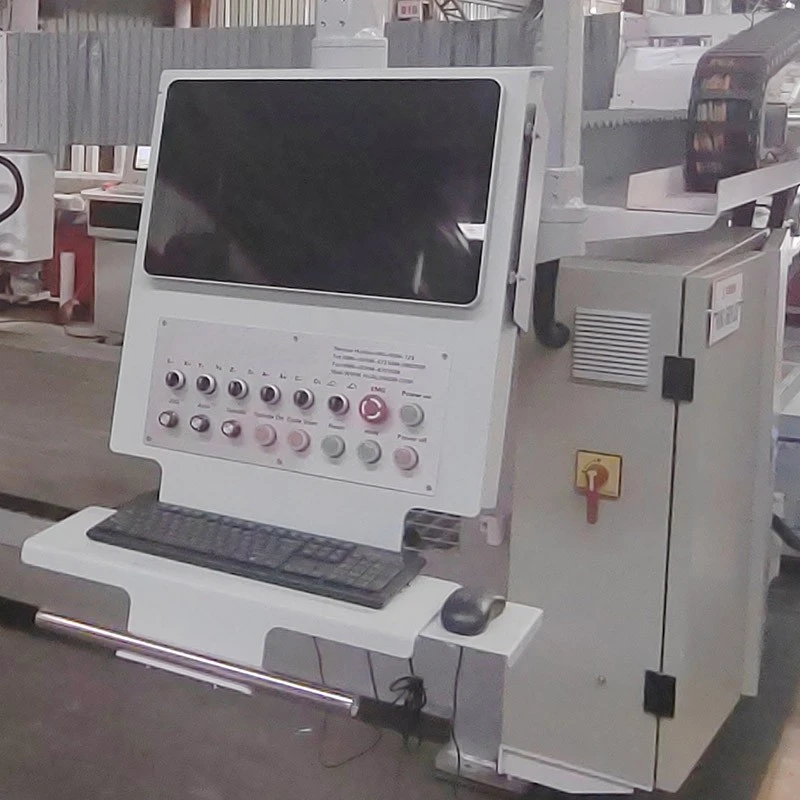

Ua ke nrog lub vijtsam loj - loj, lub tshuab ua haujlwm yooj yim.
Nws tau dhau daim ntawv pov thawj CE kom ntseeg tau tias kev ua haujlwm nyab xeeb thiab ruaj khov zoo.
Nruab nrog lub rooj ua haujlwm loj ntawm 3500 * 2100mm, tag nrho lub tshuab lub cev siv galvanizing thev naus laus zis los tiv thaiv xeb thiab ua kom ntev - lub neej kev pabcuam.
Lub tshuab tseem ceeb yog haum nrog 18.8KW mus tas li hlau nplaum lub cev muaj zog, muaj kev ua haujlwm siab thiab txuag hluav taws xob.
Cov ntawv thov tseem ceeb
Nws yog tsim rau txiav marble, granite, quartz pob zeb, sintered pob zeb, dag pob zeb thiab lwm yam ntaub ntawv.

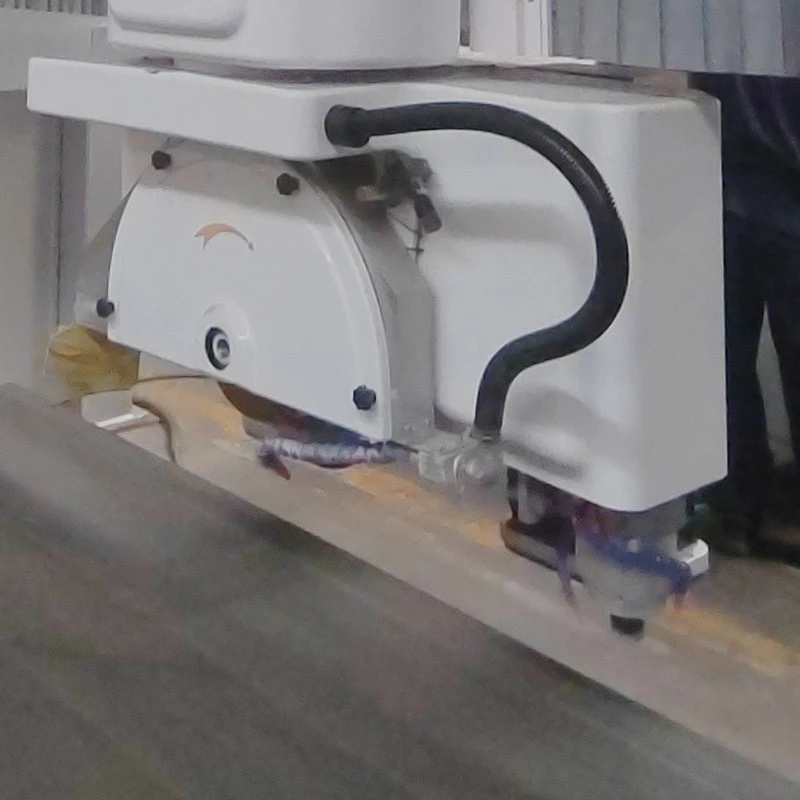

Nws txhawb nqa ncaj txiav, bevel txiav, polygon, arc, lub voj voog, tshwj xeeb - zoo li tus, nkhaus nto thiab 3D shaping ua.
Khoom siv
Dav siv rau chav ua noj thiab chav dej countertops, phab ntsa kho kom zoo nkauj, phab ntsa, paving pob zeb, pob zeb tabletops, tshuaj yej rooj, bar txee, qhov rooj casings, qhov rais casings, thiab lwm yam.
Technical Specifications
|
Qauv No |
Chav tsev |
HYNC-500 PLUS |
|
Txoj kab uas hla ntawm saw hniav |
mm |
400-500 |
|
Dimension ntawm kev ua haujlwm platform |
mm |
3500×2100 |
|
Max. txiav ntev |
mm |
3500 |
|
Max. txiav thickness |
mm |
120 |
|
Max. lifting stroke |
mm |
300 |
|
Lub zog ntawm lub cev muaj zog |
kws |
18.8 |
|
Lub zog ntawm electro-spinele |
kws |
5.5 |
|
Lub zog ntawm cutter ncej reciproctating lub cev muaj zog |
kws |
2 |
|
Lub zog ntawm crossbeam hloov lub cev muaj zog |
kws |
1.1 |
|
Lub zog ntawm qhov chaw nres tsheb hydraulic |
kws |
2.2 |
|
Lub zog ntawm lifting motor |
kws |
0.85 |
|
Kev siv dej |
m³/h |
2 |
|
Qhov Loj (L x W x H) |
mm |
5900×3380×3000 |
|
Qhov hnyav tag nrho |
kg |
5800 |
Tshuab Functions
* Lub koob yees duab muaj nuj nqi:Nthuav cov duab slab thiab ua tiav txoj kev layout txiav.
* Lub tshuab nqus tsev nqus tsev vacuum:Txav mus txiav pob zeb slabs zoo.

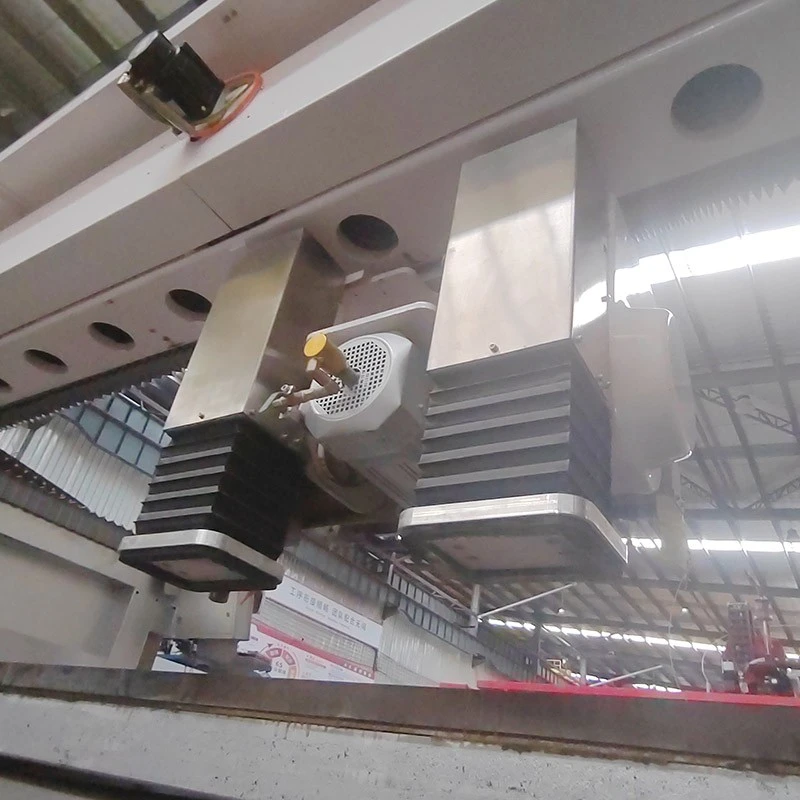

* Hluav taws xob spindle:Ua kom tiav milling, drilling thiab engraving hauj lwm rau pob zeb slabs.
* Cov rooj ua haujlwm:Tiltable mus txog 85 degree, yooj yim rau slab loading.
Optional Functions & Configurations
* Pom hniav ntsuas muaj nuj nqi
* Slab thickness nrhiav tau muaj nuj nqi
* Tsis siv neeg nias phaj ua haujlwm
* Stainless hlau qhov rooj tiv thaiv kev nyab xeeb
Tom qab -Kev Pabcuam Muag
* Lub tshuab tau them los ntawm lub sijhawm lav 12 lub hlis.
* Lub neej kev pabcuam yog muab.
* 24/7 tej thaj chaw deb kev txhawb nqa muaj.
* Ntawm -qhov kev pab cuam xa tawm tus kws tshaj lij yog xaiv tau.
