Khoom Taw Qhia

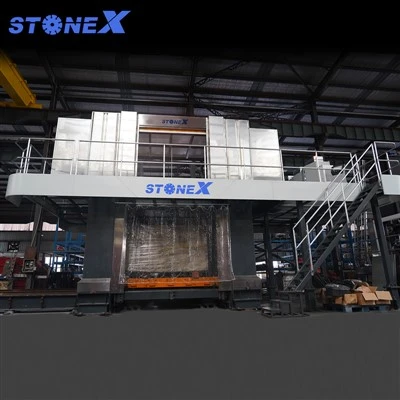

Huayi HYQY-26-1700 pob zeb ntau hniav txiav tshuab txais PLC tswj qhov system. Nws tuaj yeem nruab nrog lub saw saw nrog qhov siab tshaj plaws ntawm 3000 hli, thiab tuaj yeem tuav 9 daim, 15 daim lossis ntau dua rau kev txiav ib txhij. Nrog 6 kab lus qhia, lub tshuab nta cov qauv ruaj khov. Nws siv Siemens cov khoom siv hluav taws xob kom ntseeg tau tias kev ua haujlwm ruaj khov dua.
Lub tshuab yog siv los txiav cov pob zeb xws li marble, granite, limestone thiab sandstone. Nws qhov zoo dua yog tias nws tuaj yeem txiav cov pob zeb rau hauv nyias slabs ntawm 20 hli thiab 30 hli hauv ib qho dhau los. Nws kuj tseem tsim nyog rau kev txiav cov pob zeb rau pob zeb thiab cov pob zeb tombstone.
Khoom Parameters
|
Lub npe |
Chav tsev |
HYQY-26-1700 |
|
Main lub cev muaj zog |
kws |
110 / 132 / 160 |
|
Max. hniav txoj kab uas hla |
mm |
1700–3000 |
|
Hla -beam length |
mm |
8400 / 9800 / 10500 |
|
Longitudinal nqaj ntev |
mm |
5700 / 7000 / 10000 |
|
Lifting stroke |
mm |
1500 |
|
Lub zog ntawm lub twj tso kua mis |
kws |
9.2 |
|
Lub zog ntawm stroke motor |
kws |
4 |
|
Lub zog ntawm ntsug lub cev muaj zog |
kws |
3 |
|
Lub zog tag nrho |
kws |
130 / 150 / 180 |
|
Qhov hnyav tag nrho |
kg |
33000 (35500) |
|
Qhov Loj (L × W × H) |
mm |
10956×10600×4843 |
FAQ
Q: Lub tshuab tswj tau dab tsi?
A: Nws txais PLC tswj qhov system.
Q: Lub tshuab puas muaj ntawv pov thawj CE?
A: Yog, lub tshuab yog CE tau ntawv pov thawj.
Q: Lub tshuab puas txhawb kev hloov kho?
A: Yog, peb txhawb customization.
Q: Lub voj voog ntau lawm ntev npaum li cas?
A: Txog 30-40 hnub tom qab tau txais cov nyiaj them ua ntej.
Q: Ntev npaum li cas tom qab -muag warranty lub sijhawm?
A: Peb muab lub sijhawm lav 12 lub hlis.
Q: Koj puas txhawb nqa txawv teb chaws ntawm - qhov chaw teeb tsa thiab kev cob qhia?
A: Yog lawm, peb muab kev qhia txawv teb chaws ntawm - qhov chaw teeb tsa thiab kev cob qhia ua haujlwm.
Q: Cov nqe lus ua lag luam twg tau txais kev txhawb nqa?
A: Cov ntsiab lus xws li FOB, EXW thiab CIF tau txais kev txhawb nqa.
Tom qab -Kev Pabcuam Muag
* Peb muab 12-hli warranty rau peb cov khoom siv. Cov khoom seem dawb yuav muab rau kev puas tsuaj uas tsis yog khoom cuav hauv lub sijhawm lav.
* Peb muab kev pab cuam lub neej rau cov neeg siv khoom.
* Kev mob siab rau tom qab- pab pawg muag khoom yuav raug tsim rau cov neeg siv khoom sib txuas lus thiab daws teeb meem sai.
* Cov kws kho mob xa cov kev pabcuam muaj.
Cim npe nrov: Tuam Tshoj pob zeb multi hniav txiav tshuab, Tuam Tshoj pob zeb multi hniav txiav tshuab manufacturers, lwm tus neeg, Hoobkas
